Maprox

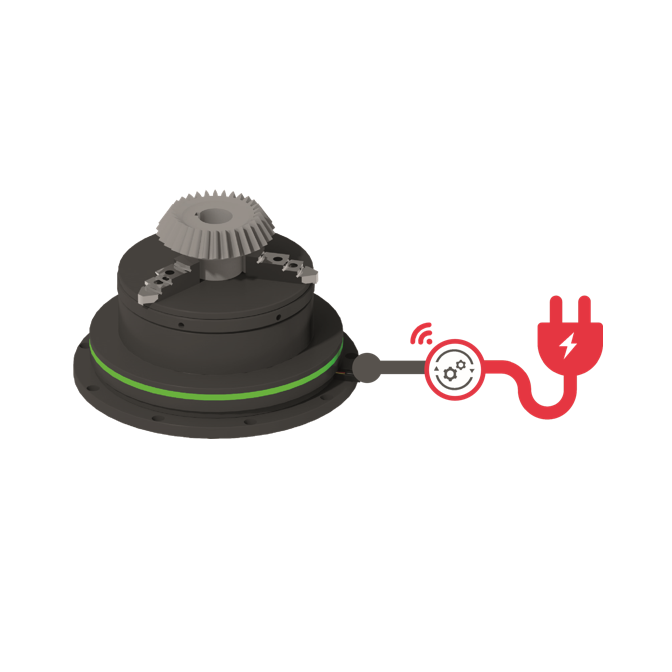

E-Chuck

E-Chuck

Regular price CHF 0.00
Regular price Sale price CHF 0.00
Sale Sold out
Taxes included.
Size

E-Chuck

• Fully automatic loading/unloading
• Endless rotation/rotation
• Electrical clamping force adjustment/monitoring
• Transmission of commands via IO-Box or CANopen

Technische Daten

• Concentricity: 0.02 mm
• Maximum clamping force: 60N
• Maximum part weight: 4 kg
• Weight: 7.5 kg
• Clamping range:
External clamping: 1.5-140 mm
Internal clamping: 46-172 mm
• Communication interface: CANopen
• Optional with I/O box
• Voltage: 24 V DC
• Current: 10 A

Download data sheet
