Maprox

Chuck 6 ZAS

Chuck 6 ZAS

Regular price CHF 0.00
Regular price Sale price CHF 0.00
Sale Sold out
Taxes included.
Type
Size

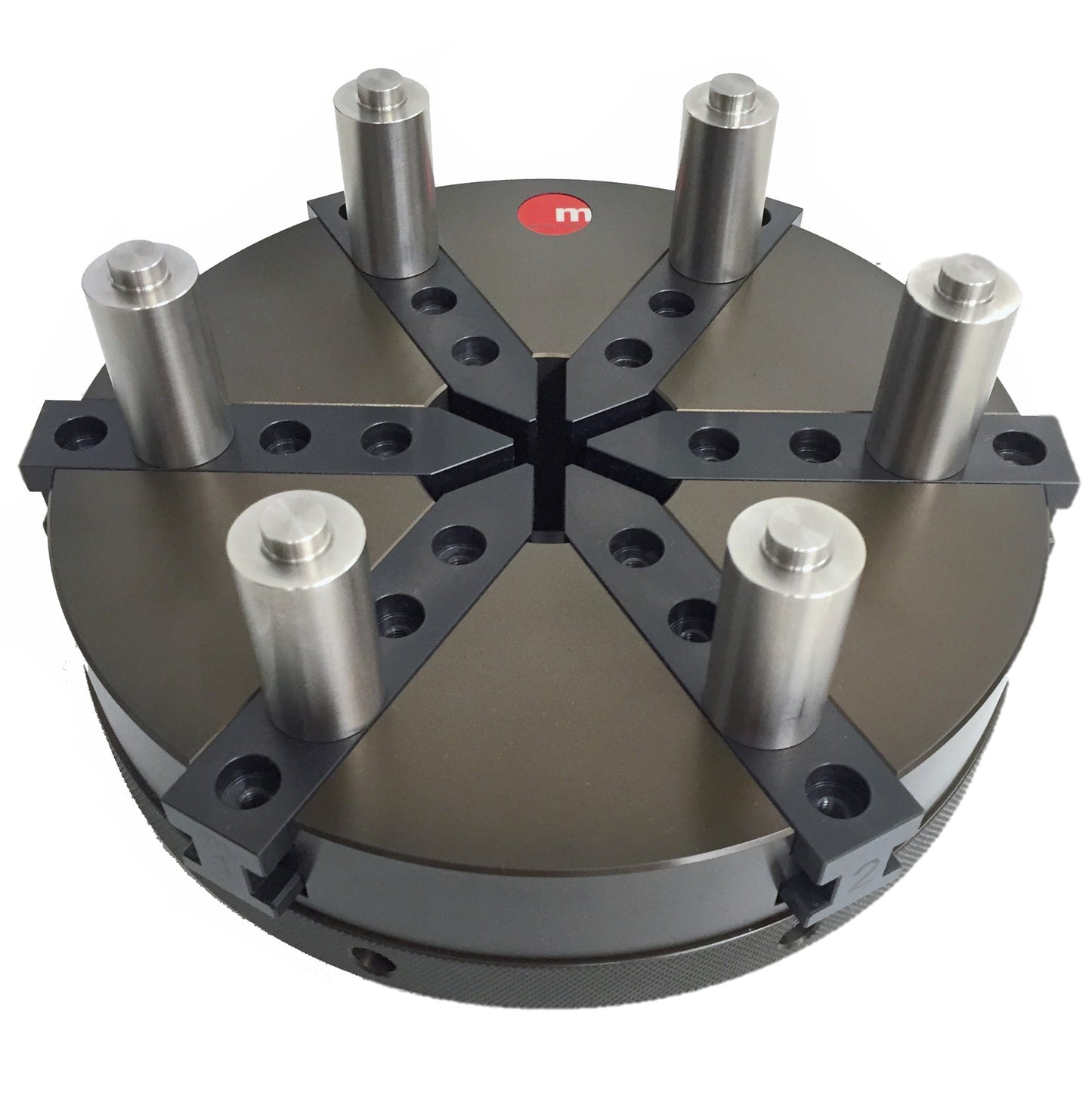

Chuck 6 ZAS

The ZAS aluminum chuck series is available in dimensions of Ø = 80-240 mm, or significantly larger if desired. Hard as steel (approx. 50HRC), while being over 50% lighter. Includes a set of ground, case hardened and turnable steel top jaws.



 Technical Details

  • Concentricity: 20 μ
  • Lateral runout: 10 μ
  • Repetitiveness: 5 μ

Download data sheet
