Maprox

Chuck 3 ZK Mini

Chuck 3 ZK Mini

Regular price CHF 0.00
Regular price Sale price CHF 0.00
Sale Sold out
Taxes included.
Type
Size

Chuck ZK Mini

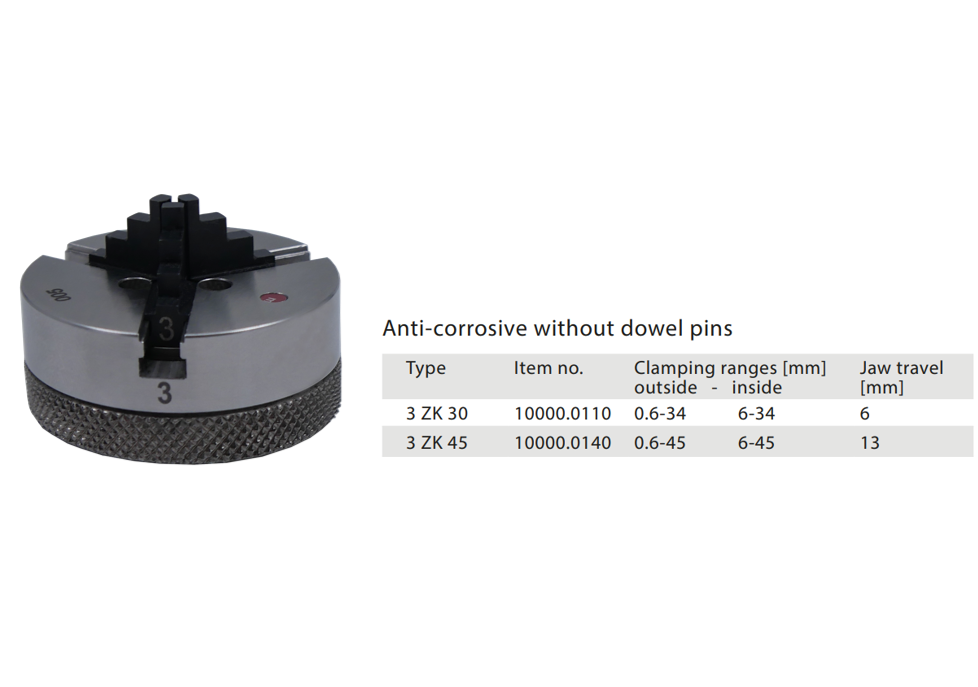

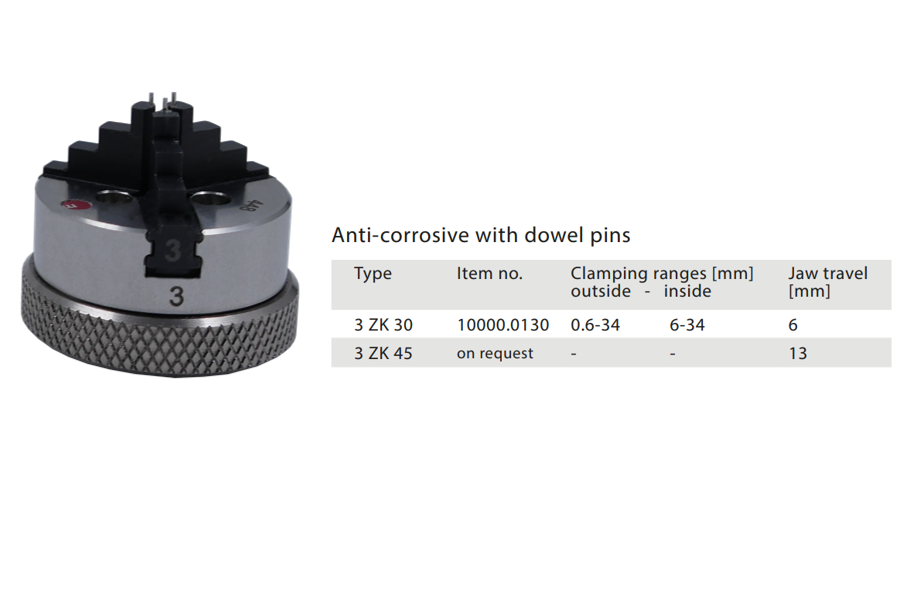

The smallest and most precise chuck in the world. Starting at a diameter of 30 mm – for clamping small shafts from 0.6 mm or rings from 2 mm inside diameter. Equipped with 2 sets of jaws for clamping from the inside or outside.

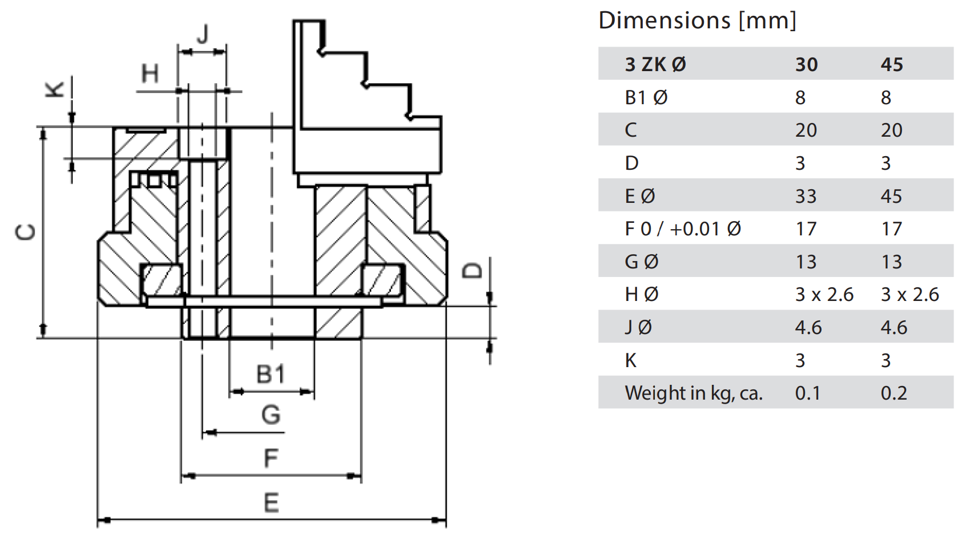

  Technical details

  • Permissible speed up to 6000 rpm.
  • Lateral runout: 10 μ
  • Repetitiveness: 5 μ

Download data sheet
